Product Details:
|
| Product Name: | Multifunctional Open LOCK | Cylinder: | Zink Alloy |
|---|---|---|---|
| Material: | SUS201 | Finishing: | Satin Stainless Steel |
| Dimension: | 242.6*77.5mm | Backset: | 62mm |
| Cebter Distance: | 62.5mm | Open Ways: | Two Ways: Key, Card |
| Fit For: | 38~50mm Door Thickness | Style: | Modern |
| High Light: | electronic gate lock,electronics door lock |
||

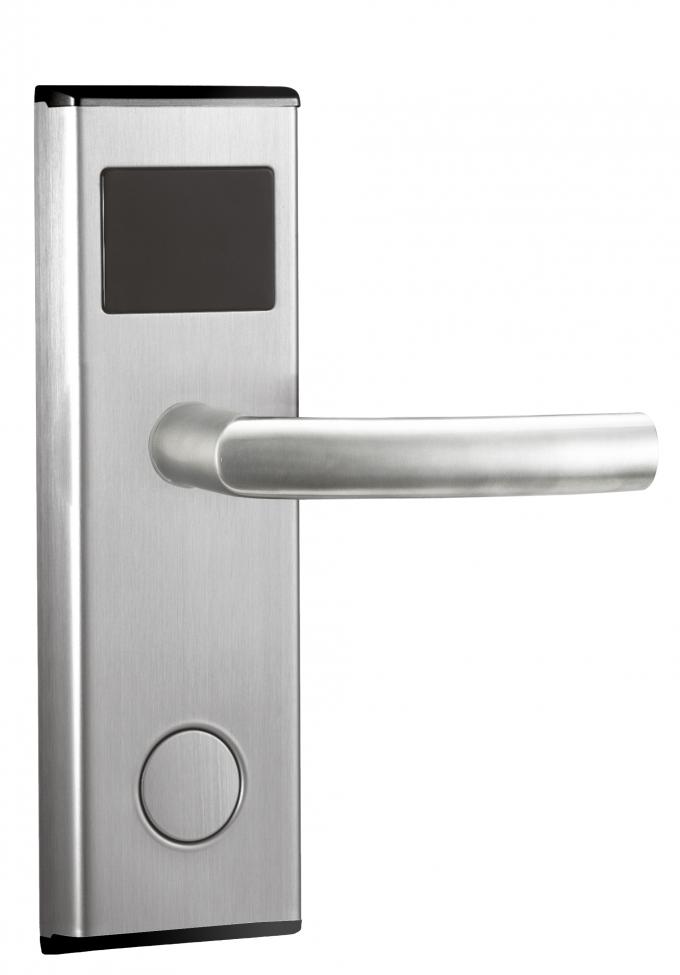

Smart Hotel Electronic Lock RFID Card Digital Hotel Door Lock
1.Using RFID,IC card-125Khz or M1 card 13.56Mhz unlocking the door.
2.Metal panel, anti-oxidation surface treatment, durable use.
3.Free handles design which prevent vandalism.
4.Unique hidden mechanical key hole design.

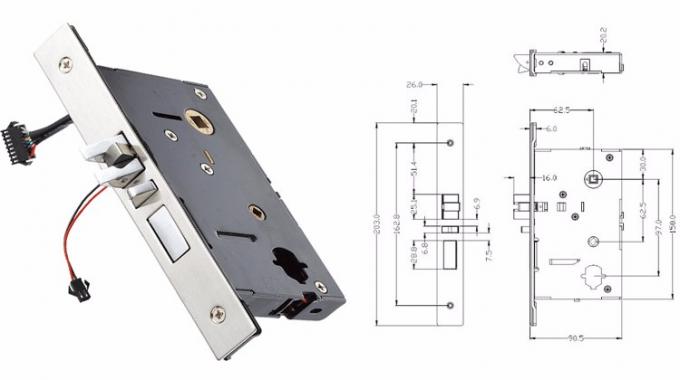

5.ANSI standard five latches structure guarantee security.
6.False-closing alarm: light and voice warning when incomplete closing.
7.Compact lock body structure, good mechanical linkage.
8.Circuit board: microcomputer chip control, more stable.
9. Low working voltage alarming function.
10.Automatic anti-false, Being able to distinguish the RF copied or forged.
| Item No | DeHaS1001-PD-GD |
| Material | SUS201 |
| Cylinder | Zinc Alloy |
| Finishing | Satin Stainless Steel |

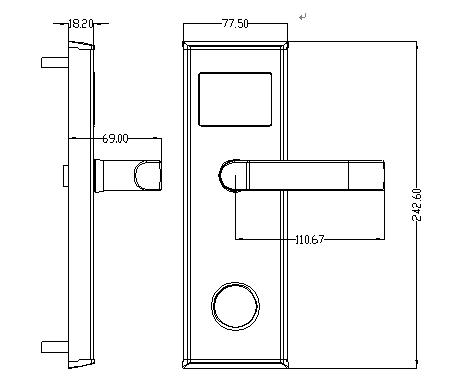

| Dimension | 242.6*77.5mm |
| Center Distance of Lock Body | 62.5 mm |
| Backset | 62mm |
| Fits Door Thickness | 38-50 mm |
| Cylinder | Zinc alloy cylinder, extra US$0.50 is needed if change to brass cylinder |
| Door Handling | Specify Right Or Left When Ordering |
| Security Grade | ANSI/BHMA Grade 2 Security |
| Hotel Lock System Components | Door Locks, Encorder For Keycard, RF Cards, Energy Saving Switch, Data Collector, Management Software |

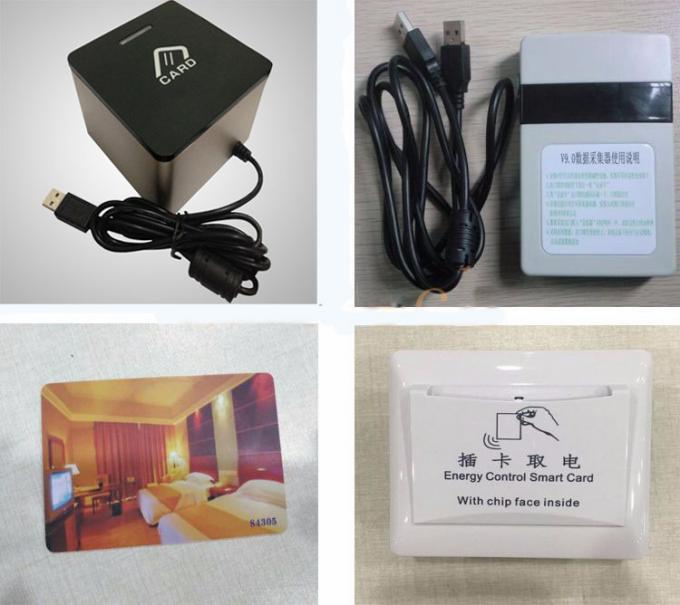

Hotel System
1. USB Card Encoder for hotel door lock
Connect with the Computer of hotel front desk by usb port, worked with door lock managerment software to issue cards.
2. Data collector for hotel door lock
You can use this equipment to collect opening records from the hotel lock, connect with door lock management software through USB ports to download the opening records from this data collector.
When some stuff lost, you can easily figure it out that who have got into the hotel room.
3. RFID Card for hotel door locks.
Our hotel door lock works with RFID, Mifare 1 Key cards, it can be 125Khz by default, if you choose M1 card, it with high frequency of 13.56Mhz. If you don't need software, we can off you the lock works with ID cards, you can program cards on the lock directly.
4. Energy Saving switch
Used to gain power when gust enter the room and save electricity when the guest leave the hotel room.
When the guest opens the hotel door lock, insert guest card into Energy Saver to get the power, Very convenient.

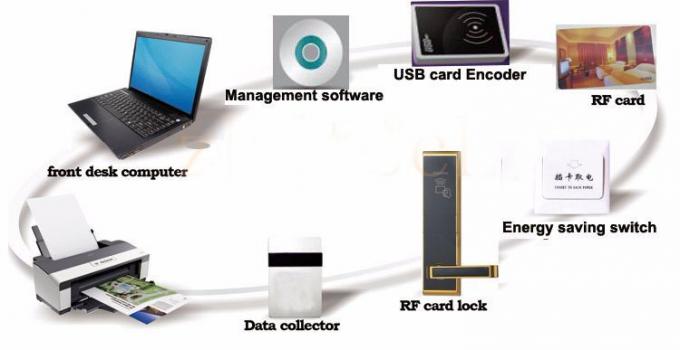

Basic (necessary) components of hotel ock include:
· Card encoder ---program all kinds of cards
· Software ---management system, disc to be installed to computer
· Computer ---used to install lock management software, prepared by hotel
· Card --- 125khz Termic Card or 13.56MHz MF 1 card (it can be key tag or wristband)
· Lock --- installed onto the door
Optional components of hotel door lock include:
· Data collector --- used to collect the unlocking records from the locks.
· Energy saving switch --- use the key card to turn on lighting
· Elevator controller --- control the elevator access of the key card
· Room Display --- display the room number, hotel logo etc
II. BUSINESS TERMS & PACKAGE SHIPPING
| Place of Origin | Guangdong, China |
| MOQ and Price | Negotiable |
| Payment | T/T,L/C, Cash, Western Union,Paypal, Money Gram |
| Delivery Time | 1-2 weeks |
| Supply Ability | 50,000 sets / month |
| Applicable Standard | QB/T2474-2000 |
III. ABOUT US
1. Bakue Group is one of the leading companies specializes in indoor construction and decoration products like hardware , bathroom accessories , lights , floor boards, curtains etc which can provide the one-stop service to match the various demands of our customers worldwide.
2. Our products are world-class, with truly remarkable technology and top quality.
3. Small orders of OEM or ODM are available.
Tag : Hotel Lock. Smart Lock. RFID lock
