Fingerprint Push Pull Smart Door Lock

Smart Push and Pull Door Lock Security Camera Fingerprint Door Look



Product Parameter





Unlock ways	WiFi,Fingerprint, Passcode, IC card, Mechanical Key,Remote Controller	Material	Zinc Alloy+stainless steel
Color	Star Grey/Champagne/Crystal Brown	Suitable for	Wooden doors, Aluminum doors, Metal doors
Card Type	Mifare 1 Card (13.56MHz)	Data Capacity	110pcs fingerprint +200pcs cards+ unlimited Pincodes
Fingerprint Reader	FPC Fingerprint Reader	Item Size	260mm (H)*70mm (W)*35mm(T)
Weight	3.5kgs	Certification	CE/ROHS
Working Voltage	6V (4*AAA batteries)	Applicable for door thickness	Standard Edition:30mm-100mm Custom Edition:90mm-100mm
Applicable for door frame wideness	over 70mm	Handle Reversible	NO
Available Mortise	5085/6085/7090	Working Temperature	-30℃~70℃
Electronic Moritse life span	Support 10,000 Times of Lock & Unlock Operation	Application	Apartment,Home,School,Dormitory,Office





Product Feature:

1. Push and Pull Handle,Most convenient way to open/close doors,no more grab and turn,just pull and push!

2. Quick view of in&out activities with sercurity camera

3. One touch unlock with your samrtphone bluetooth

4. Unlock/lock record checking by your smartphone

5. Anti theft alarm

6. Various mode for unlocking

7. Real time video/capture

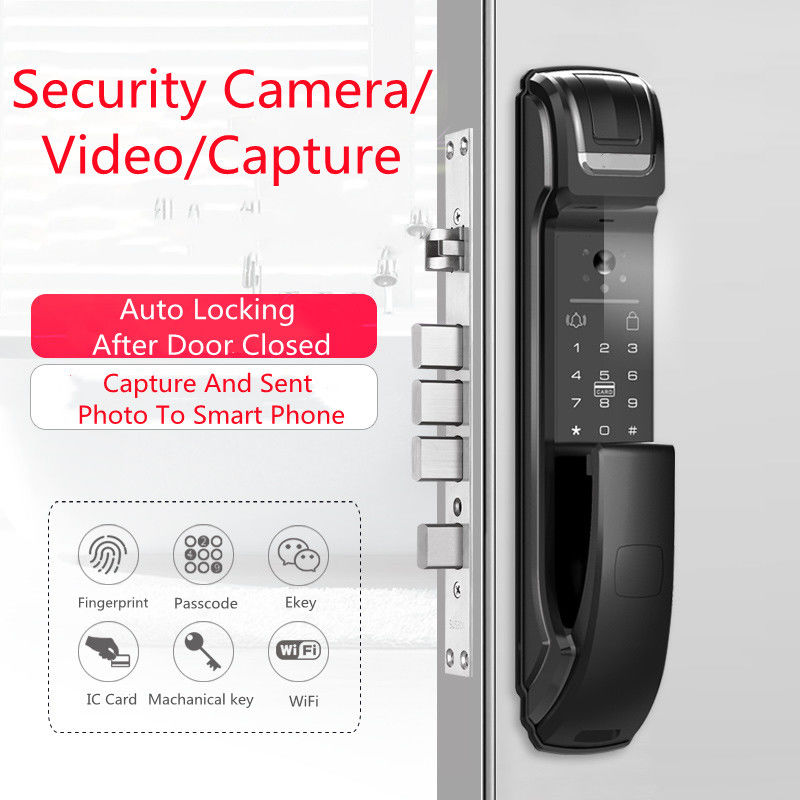

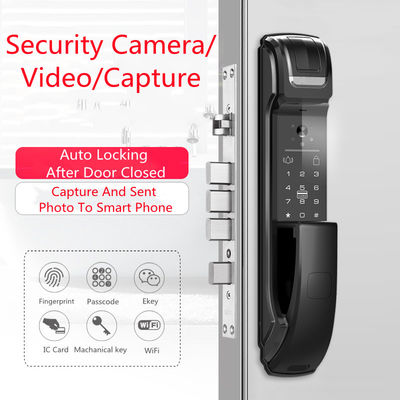

Vitual Sercurity Camera/Video/Capture photo



Door Locks automatically after you enter or exit

Capture Photo and sent to your smartphone

Unlocking Mode:WiFi,Fingerprint, Passcode, IC card, Mechanical Key,Remote Controller

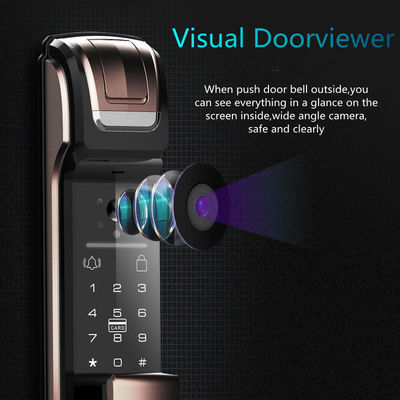

Visual Doorviewer

When push door bell outside,you can see everything in a glance on the screen inside,wide angle camera,safe and clearly





High Definition Camera

Take everything In a Glance

High definition video sensor 8,000,000 pixel wide angle camera,can take everything in a glance outside the door

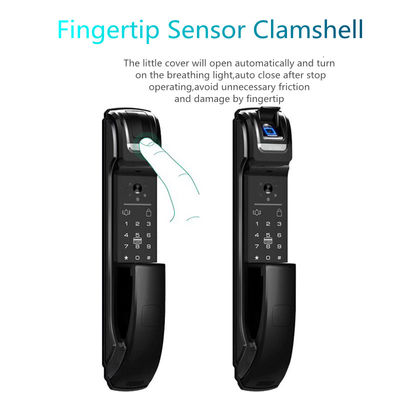

Fingertip Sensor Clamshell



The little cover will open automatically and turn on the breathing light,auto close after stop operating,avoid unnecessary friction and damage by fingertip

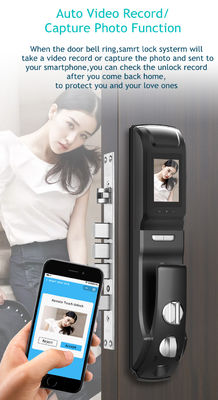

Auto Video Record/Capture Photo Function

When the door bell ring,smart lock systerm will take a video record or capture photo and sent to your smart phone,you can check the unlock record in real time or review after you come back home,to protect you an your love ones.







Fingerprint Indetification

Scan skin’s fingerprint,anti the fake fingerprint,after 5 times enter the false fingerprint,the smart lock will alarm and sent the visitor’s photo to your smart phone





Advantage Alarm Systerm

When someone pick the lock in abnormal condition,the lock will capture the vistor then sent the signal and alarm to user(or for example: enter wrong password or swiping fake IC card for 3 times ,touch 5 times fake fingerprint)



Connecting WiFi,Unlocking in a Touch Remotely

New Generation Net Mode





Mini Program Remote Temporary Ekey

Set the ekey for limit time or the special time when your friend or hour labor visit your house,so convenient when you are not at home

Ekey:62079896(effective within 5 min.)





Real Time Unlock Record Checking

Smart Lock can connect the gateway,you can check the record via your smart phone APP where ever you are at the office or on business travel



APP Remote Control

Use your smart phone to check unlock record at anytime,set the user name,unlocking the door by your smart phone remotely,abnormal alarm reminder







C-Class Anti theft lock Cylinder

Use multiple mode of anti theft technology design,anti the professional and technological theft,safer and reliable



Product Diagram

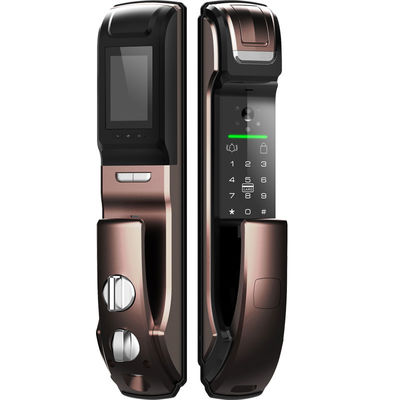

Classical Three Colors:Star Grey/Champagne/Crystal Brown

Gorgeous appearance and amazing looking experience for user,it’s an beauty enjoyment everytime open the door



Product Dimension







Product Parameter





Dimension Drawing of Standard Lock Body



Dimension Drawing Of Overlord Lock Body



9 Lock Body for your Options



Installation Diagram



FAQ



Must I replace the battery after used the device for some time?

Yes, should replace the battery if the battery reached to it's servie life



Can I buy the part from our local market or other factor for repairing the fault?

We strongly recommend you to buy parts from us.



1. We do not sure the other parts is working with the device

2. If you bought parts from other ways, we are afraid that we are not able to support you the technical service



Can I customize hardware and software from you?

Yes, we provide ODM and OEM products, we can customize both hardware and software for our clients.



Can I get hardware and software technique support?

Yes, we have professional hardware and software engineer team specially supporting for out clients.



Can I have sample? Is it free?

We can provide you sample but cost is on buyer's side,if the buyer place the formal order,sample cost can return to client.
