Product Parameter
| Unlock ways |
TTlock APP/WiFi(via gateway),AI Voice command,Fingerprint, Passcode, Mechanical Key |
Material |
Zine Alloy Handle ,304 steel lock body |
| Color |
Black,Sliver,Red Bronze,Gray |
Suitable for |
Wooden doors, Aluminum doors, Metal doors |
| Guarantee |
1 Year |
Data Capacity |
200pcs fingerprint +200pcs cards+ 150 Pin codes |
| Fingerprint Reader |
FPC Fingerprint Reader |
Item Size |
220mm(H)*50mm(W)*11.5mm(T) |
| Unlocking Time |
About 1.5S |
Working Electric Current |
Less than 200mA |
| Net Weight |
1.88KGS |
Certification |
CE/ROHS |
| Working Voltage |
6.0V (4*AAA batteries) |
Applicable for door thickness |
Standard Edition:30mm-55mm Custom Edition:90mm-100mm |
| Applicable for door frame width |
over 35mm |
Handle Reversible |
Yes |
| Available Mortise |
5050(other mortise can be customazied) |
Working Temperature |
-30℃~70℃ |
| Electronic Moritse life span |
Support 10,000 Times of Lock & Unlock Operation |
Application |
Apartment,Home,School,Dormitory,Office |
Video Introduction:
Advaes Of The Smart Lock
- Easy to Install,you can DIY installation easily,without extra drill one hole,no wire
- Handle direction reversible,you can change the handle direction by yourself when installation,this lock adjust for both left and right door opening direction,free handle
- Intelligent management system,safe for user,convenient for operation
- Various Unlocking Mode, for users' options
- 4*AAA lithium battteries on the handle,easy to change

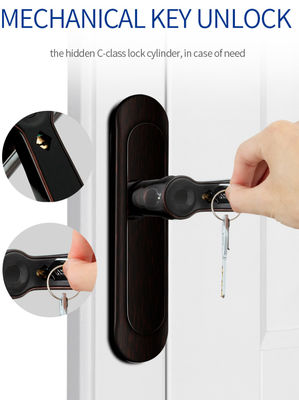

- Hidden machanical key,the key is hidden on the hand,so it is convenient for backup
Lock Specification Diagram
Freely adjust installation hole on the front and back panel,panel screw pitch-row adjust the hole,the installation construction is showing on the photo
- Elegant Apprearance,surface with piano painting,more stylelish
- Intelligent structure design
- long time battery service(about 1 year)
Unlocking Mode
- Fingerprint
- AI voice command
- Machanical key
- Passcode
- Bluetooth
- WiFi ----get this funciton via gateway
Anti-theft semiconductor fingerprint identification
Semiconductor fingerprint indetification,sensitive fingerprint scanner,can unlock the door in a fast speed
160*160mm Itelligent AI chip,accurate identification for all ages
Stainless steel metal ring seamless package,high temperature resistance,burst proof
Interacting with Smart automatic devices

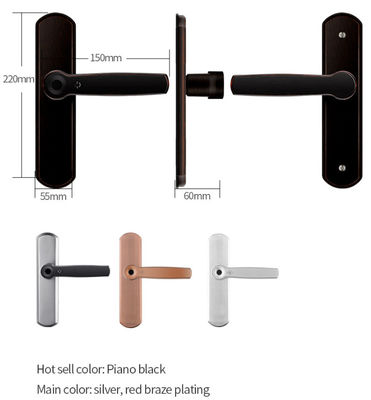

Lock Size Diagram:220mm(H)*55mm(W)*60mm(T)
Color:Black,Sliver,Red Bronze,Gold,Gray
Lock Body Size
FAQ
Must I replace the battery after used the device for some time?
Yes, should replace the battery if the battery reached to it's servie life
Can I buy the part from our local market or other factor for repairing the fault?
We strongly recommend you to buy parts from us.
1. We do not sure the other parts is working with the device
2. If you bought parts from other ways, we are afraid that we are not able to support you the technical service
Can I customize hardware and software from you?
Yes, we provide ODM and OEM products, we can customize both hardware and software for our clients.
Can I get hardware and software technique support?
Yes, we have professional hardware and software engineer team specially supporting for out clients.
Can I have sample? Is it free?
We can provide you sample but cost is on buyer's side,if the buyer place the formal order,sample cost can return to client.
