Smart TTlock FPC Fingerprint Door Lock Bluetooth With Reversible Handle

TTlock Electronic APP Electronic Lock Fingerprint Lock Bluetooth Smart Lock Keyless Door Lock Hanle Zine Alloy

Product Detail Parameter



Unlock ways	WiFi,TT lock App,AI Voice command,Fingerprint, Passcode, card, Mechanical Key	Material	zinc alloy handle, aluminum alloy lock body
Color	Black with Silver	Suitable for	Wooden doors, Aluminum Alloy doors, Metal doors
Card Type	Mifare 1 Card (13.56MHz)	Data Capacity	110pcs fingerprint +200pcs cards+ unlimited Pincodes
Fingerprint Reader	FPC Fingerprint Reader	Item Size	230mm (H)*55mm (W)
Weight	2.3kgs	Certification	CE/ROHS
Working Voltage	6V (4*AAA batteries)	Applicable for door thickness	Standard Edition:30mm-55mm Custom Edition:90mm-100mm
Applicable for door frame wideness	over 35mm	Handle Reversible	YES
Available Mortise	3585/4585/5085/6085/4550/5050/2585/5072	Working Temperature	-30~70℃
Electronic Moritse life span	Support 10,000 Times of Lock & Unlock Operation	Application	Apartment,Home,School,Dormitory,Office





Video Intruduction:



















Lock's Detail Advantage:



Durable material,Zinc Alloy handle and Aliminum Alloy lock body,stronger construciton,anti damamge,durable for use



Hidden machanic key,the key is hidden in the lock handle,easy to intall,but it can be safer





Reversible handle,you can make DIY installation,adjusting for both left & right door opening direction



Free handle,Lifting handle can double lock

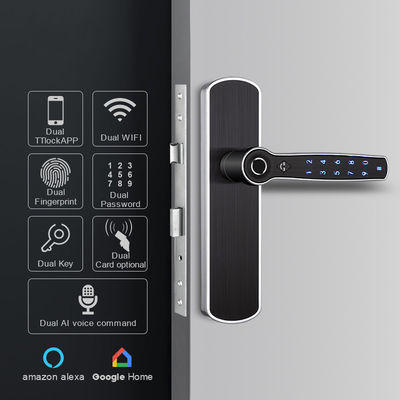

Variety Unlocking Mode



1.TTlock APP

2. WiFi

3. Card

4.Fingerprint

5.AI Voice Command

6.Machanic key

7.Password



TTlock APP Video Show:

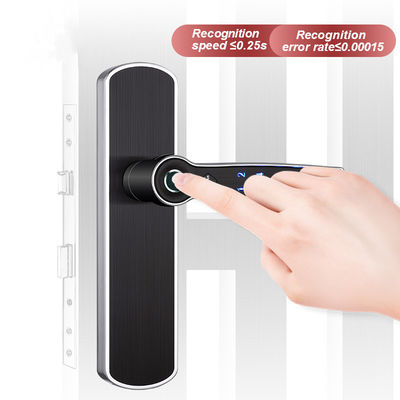

Anti-theft semiconductor fingerprint identification



Semiconductor fingerprint indetification,sensitive fingerprint scanner,can unlock the door in a fast speed



160*160mm Itelligent AI chip,accurate identification for all ages



Stainless steel metal ring seamless package,high temperature resistance,burst proof





This is a smart  door lock,can support TTlock application unlocking funciton





Lock systerm is itelligent ,both inside lock and outside lock has the lock systerm,double protection,safe stable and more reliable

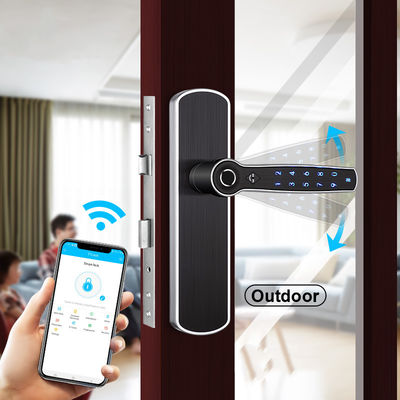

WiFi remote unlocking function



This itelligent function is so convenient that when you are not at home when the visitor coming,you can sent the time-limited ekeys via mobile APP and authority's entrance for your visitor ,so that he can opening the door,avoid the unnecessary waiting and embarrassment





The strong function diagram of the mobile APP,Suppor over 20 languages:English,Spanish,Portuguese and more(constant to uppgrade)



The functions including:Bluetooth unlock,WiFi remotely unlock,Ekeys management,Manage card users,etc.









AI Voice command mode,you can unlocking the door via your voice command,itelligent and warm

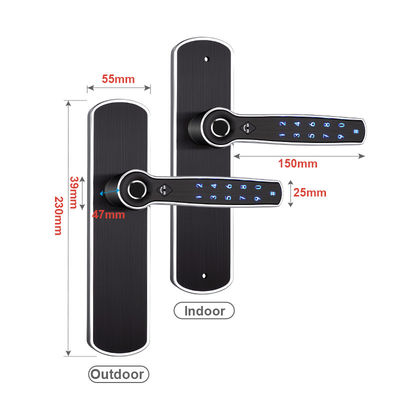

Product Size Diagram



The external and internal lock plate size:230mm(L)*55mm(W)



Lock handle size:150mm(L)*25mm(W)

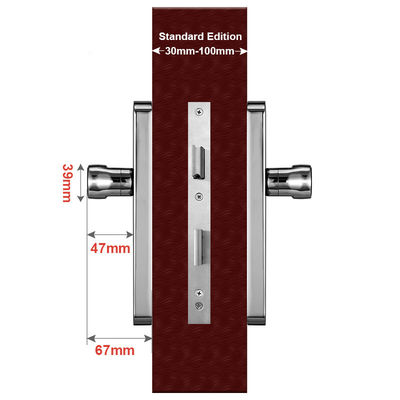

Suitable for the door frame,please see the diagram below







Lock body size,suitable for mortise size,single latches,3585/4585/5085/6085/4550/5050/2585/5072 or more







Battery detail location and battery type

The battery is in the handles in both indoor lock and outdoor lock,battery type is 4*AAA batteries







Install Instruction:















FAQ



Must I replace the battery after used the device for some time?

Yes, should replace the battery if the battery reached to it's servie life





Can I buy the part from our local market or other factor for repairing the fault?

We strongly recommend you to buy parts from us.





1. We do not sure the other parts is working with the device



2. If you bought parts from other ways, we are afraid that we are not able to support you the technical service





Can I customize hardware and software from you?

Yes, we provide ODM and OEM products, we can customize both hardware and software for our clients.





Can I get hardware and software technique support?

Yes, we have professional hardware and software engineer team specially supporting for out clients.





Can I have sample? Is it free?

We can provide you sample but cost is on buyer's side,if the buyer place the formal order,sample cost can return to client.
